2027 Arctic Cat ZR 858 EPS 137" - SPRING ORDER

Stock #  ACS-27Z858EPS
$23,199 CAD
SPRING ORDER
Get a Quote Get Financed Value a Trade
Print ButtonPrint Contact ButtonContact Us
Overview
SPRING ORDER NOW!!
Available in Black or Green
Spring Order Open until March 23, 2026

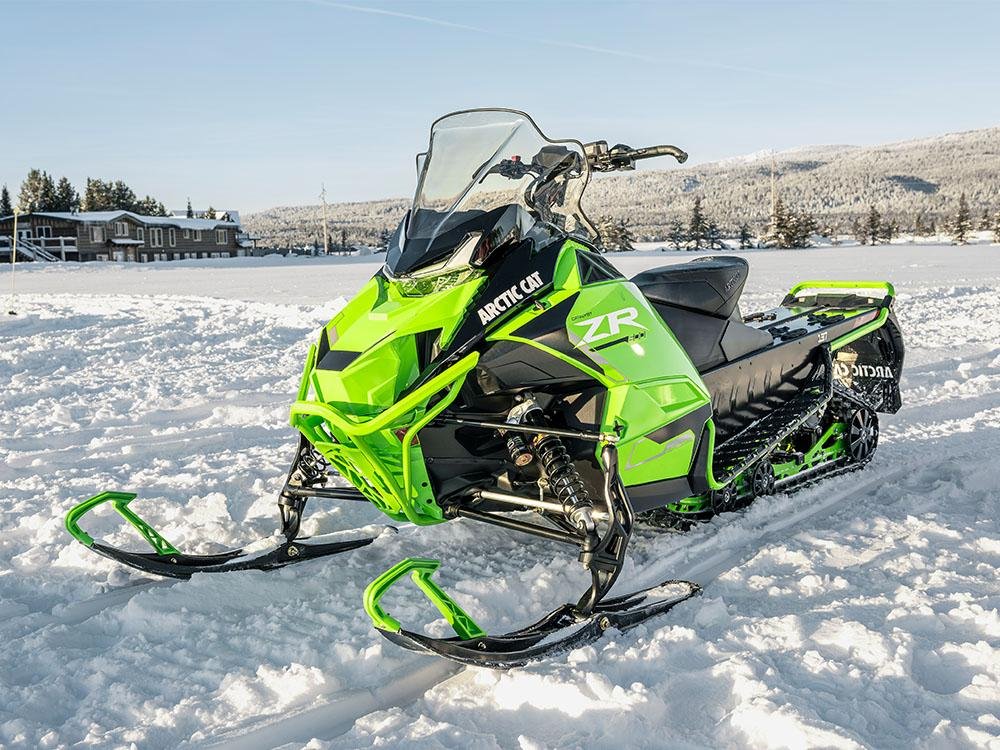

ZR

Refined for the Ride

The ZR delivers responsive handling, capable power and everything you need for a full day of trail domination. With the rider-first CATALYST™ platform and available electronic power steering, these sleds provide confident control.

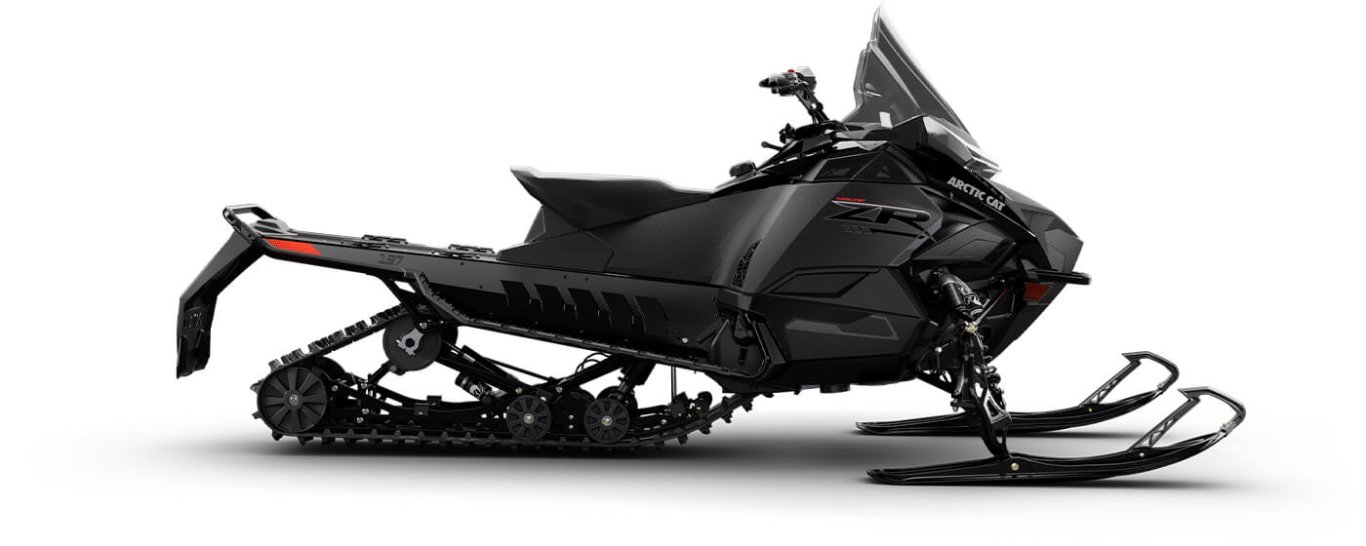

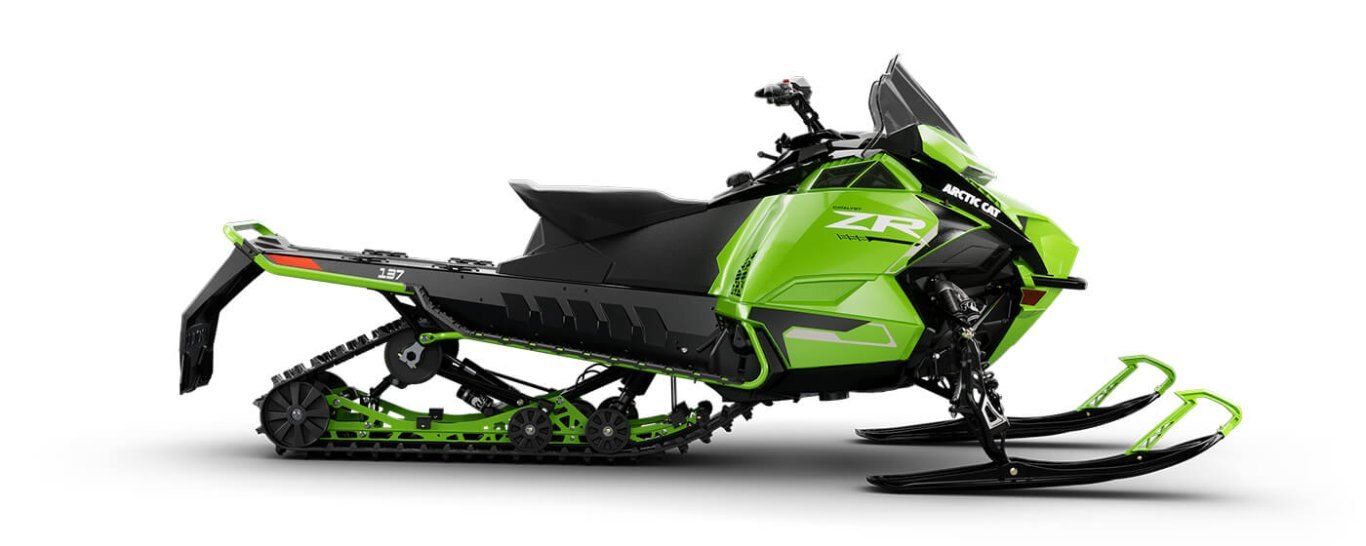

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER ZR 858 EPS

Unmatched Performance

  • 858cc C-TEC2 Twin Cylinder EFI Engine
  • AWS™ 42 Front Suspension
  • ATAC-3 Adjustable-on-the-Fly Suspension
  • Fox iQS/IFP Rear Shocks, Fox iQS Ski shocks
  • Electronic Power Steering
  • Mid-Height Windshield
  • Arctic Cat G8 Display
Specifications
Model
ZR
Category Name
Snowmobiles
Year
2027
Sale Type
New
Manufacturer
Arctic Cat
engine
Cooling
Liquid
Exhaust
APV w/ Tuned Pipe, Pipe Sensor, Stainless Steel Manifold & Muffler
Ignition
Digitally Controlled CDI
Cylinders
2
Engine_Type
858, 2-Stroke
Lubrication
Electronic Injection
Displacement
858
Bore_x_Stroke
73.8 x 70 mm
Fuel_Capacity
10.4 gal
Fuel_Delivery
Dual Stage Injection
Minimum_Octane
91
Oil_System_Capacity
3.0 qt
Engine_Stator_Output
270W @ 3000 RPM
Coolant_System_Capacity
5.4 qt
powertrain
Brakes
Stealth Hydraulic Master Cylinder
Gearing
30/58
Reverse
Push-Button Engine
Chain_Pitch
Belt
Drive_Clutch
ADAPT
Drive_System
AC Trail Belt Drive
Driven_Clutch
ADAPT
Clutch_Calibration
0-5,000 ft
Track_Drive_Sprocket
9 Tooth, 2.86 Pitch, Involute
suspension
Sway_Bar
Standard
Ski_Shocks
Fox 1.5 iQS
Rear_Travel
13.5 in
Front_Travel
8.2 in
Rear_Suspension
(129)SLIDE-ACTION with 3 Wheel Rear Axle Assembly & Adjustable Torsion Springs (137)SLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm & Adjustable Torsion Springs
Front_Suspension
AWS 42
Rear_Track_Shock
Fox 2 iQS
Front_Track_Shock
Arctic Cat IFP 1.5
dimension
Lug
1.25 in
Pitch
2.86 in
Ski_Stance
41.5-42.5 in - Adjustable
Track_Type
Ripsaw or Ripsaw II
Runner_Type
Long Dual Runner 4-Bolt w/ Carbide
Track_Width
15 in
Track_Length
137 in
Ski_Type/Width
Trail - 6 in
Overall_Chassis_Width
48-49 in
Overall_Chassis_Height
47 in
Overall_Chassis_Length
118 in or 126 in
instrumentation
Oil
Digital
Fuel
Digital
Clock
Digital
Hours
Digital
Coolant
LCD Icon
Odometer
Digital
Altimeter
Digital
Tachometer
Digital
Speedometer
Digital
Type_of_Gauge
G8
Battery_Voltage
Digital
features
Color
White
Seating
Trail
Starter
Push-Button Electric Start
Lighting
LED
Handlebars
Hooked
Windshield
Mid Height
Heat_Exchanger
Front/Long Tunnel
Standard_Accessories
12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Standard Brake Disc, Ratio Steering, Tether Switch, Visor Plug-In
main features

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER PEAK PERFORMANCE UNLOCKED

CATALYST CHASSIS

The revolutionary CATALYST platform has been built from the ground up to optimize every aspect of your ride, so much so that you’ll feel at one with the sled. With enhanced ergonomics, a lower center of gravity, our exclusive laydown engine design, specially calibrated suspension and more, this changes everything.

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER LIGHTWEIGHT, YET POWERFUL

600-SERIES C-TEC2 ENGINE

This robust, yet lightweight 599cc C-TEC2™ engine with Dual-Stage Injection (DSI) offers more than enough power to carve up the backcountry or conquer the trails, while keeping the sled feeling weightless.

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER CONFIDENCE-INSPIRING HANDLING

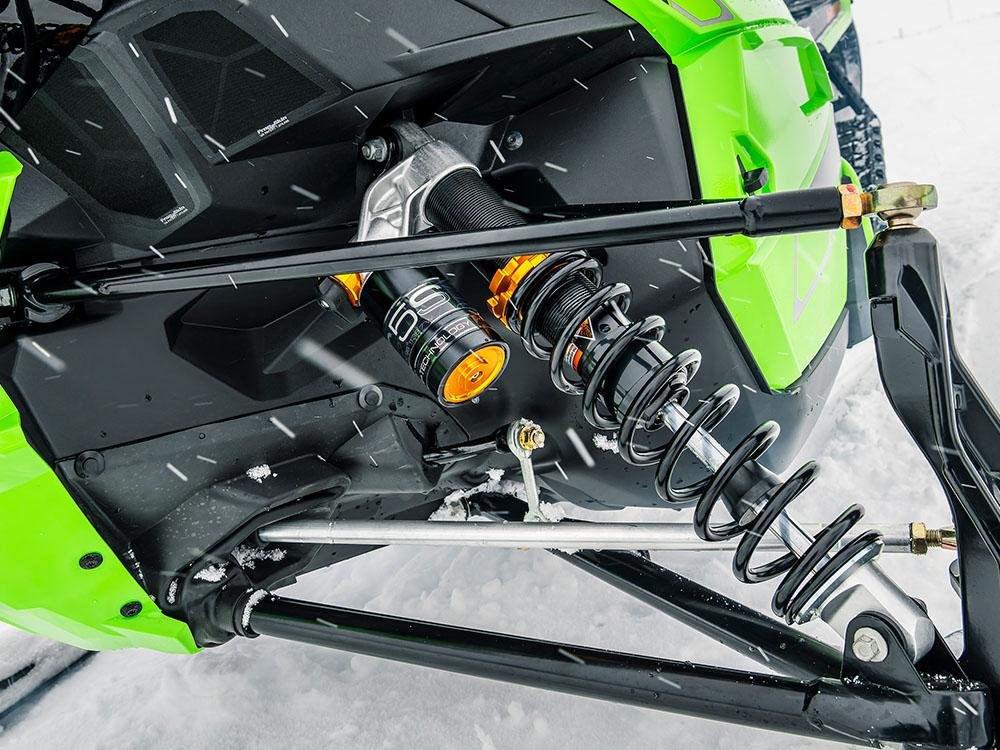

AWS 42 FRONT SUSPENSION WITH PROGRESSIVE RATIO STEERING

The AWS 42 Front Suspension is engineered specifically to compliment the ZR 600. With progressive-ratio steering to reduce rider effort, you'll experience more control.

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER NO ROUGH RIDES

SLIDE-ACTION™ REAR SUSPENSION

The industry-exclusive SLIDE-ACTION rear suspension design  keeps the front arm engaged while the rear arm compresses, so you'll hardly feel a bump in the trail.

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER ULTIMATE ADJUSTABILITY

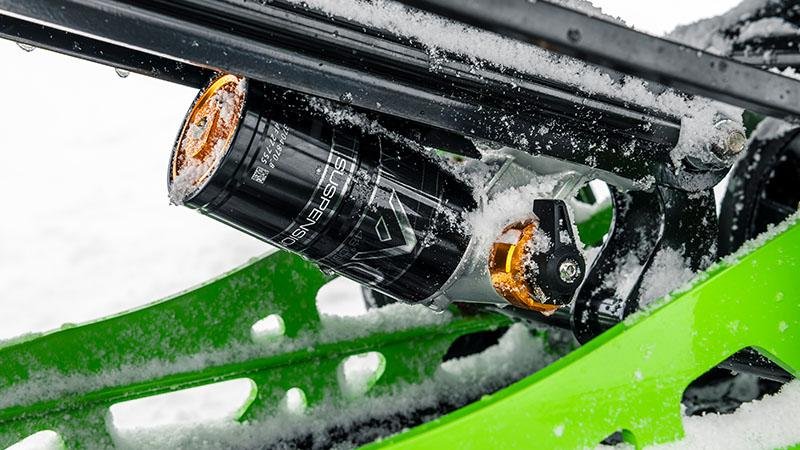

AC5S SHOCKS

 Meet our anything-but-stock shocks. AC5S ski, front and rear track shocks are designed and calibrated at Arctic Cat for Sno Pro® sleds and feature a unique color scheme. The 5-position adjustment with adjustable spring preload gives you even more flexibility to finetune your ride.

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER UNMATCHED HANDLING

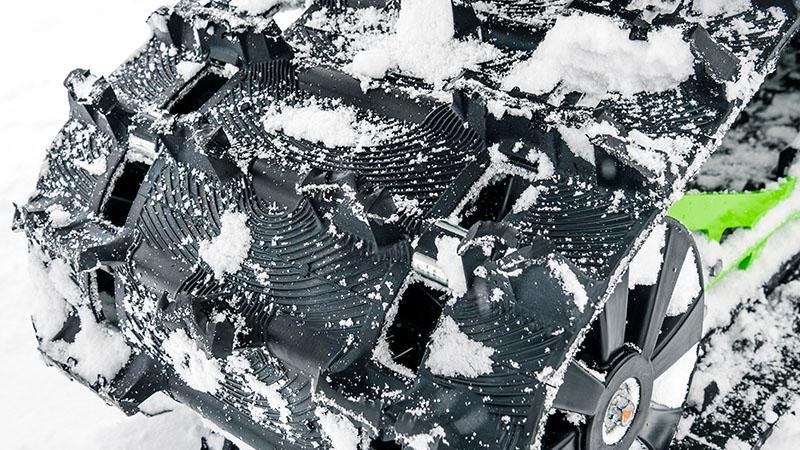

RIPSAW™ AND RIPSAW II TRACK OPTIONS

Available in 129- and 137-inch lengths, the Ripsaw track features angled 1.25-inch lugs engineered for confident handling and quick acceleration. The original Ripsaw excels on hard-packed surfaces, while the Ripsaw II broadens capability across both firm and looser conditions for more all-around stability and control.

2027 Arctic Cat ZR 858 EPS 137 SPRING ORDER EASILY ACCESS INFORMATION

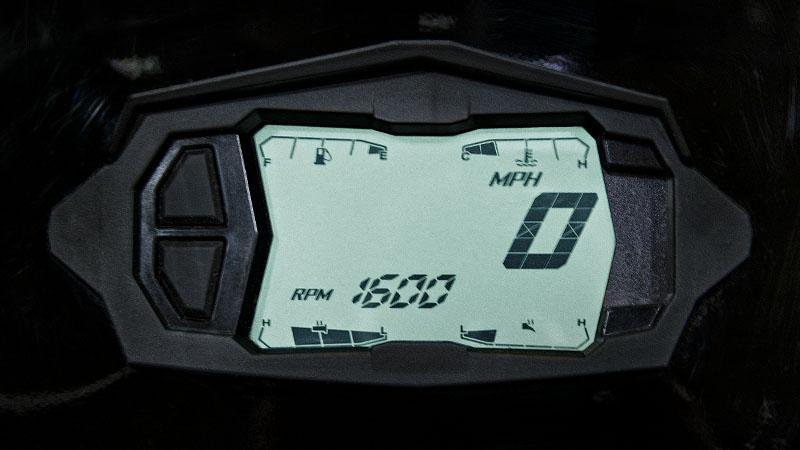

SPORT GAUGE

Delivers essential data, keeping your attention on the ride ahead.
