2025 ARGO XPLORER XR 500 - FALL SALES PROGRAM

Name: 2025 ARGO XPLORER XR 500 - FALL SALES PROGRAM
Brand: Argo
Availability: InStock

Stock # ARG-25F30144

Sale

$5,995.00

$8,399 CAD

Reserve Yours What is Hold With Deposit?

Get a Quote Get Financed Value a Trade

Model

Xplorer

Category Name

ATVs

Year

2025

Sale Type

New

Manufacturer

Argo

Vin

RFBLR33U9SBF30144

Quantity

Manufacturer Qty

Color

GREEN

Overview

ON SALE - SAVE $2,404.00 With 2 Additional Years Of Warranty - 3 YEARS WARRANTY TOTAL!

Out The Door Weekly Payments As Low As $34.00 Weekly (OAC)

Expires: December 24th, 2025

STOCK FEATURES

- 443cc Liquid-Cooled Engine with EFI

- Automatic CVT with Engine Braking

- 24" Tires with Steel Rims

- Electronic Push-Button 2WD/4WD with Front Differential Lock

- Front and Rear Independent Double A-Arm Suspension

- Front and Rear Hydraulic Disc Brakes

- Heavy-Duty Steel Front & Rear Racks

- Multifunction Digital Gauge

- 2" Receiver

- Hi/Low Projector Beam Headlights with LED Running Lights

- Aberfoyle Powersports New Showroom at 94 Brock Road South, Puslinch Ontario, N0B 2J0 has what you want!

- Call our Sales Department at 1-519-763-1401 Ext. 2 for all the Exciting Details including Extended Warranty and Financing Details!

- Follow "AberSno" on Facebook and Instagram to take advantage of our great contests and deals!!

Taxes, PDI, Freight, Licence, Registration and Fees included in finance option only. Pricing, Programs, Options, Financing Rates & Terms subject to change without notice. Any extended Warranty & Financing options not included in advertised pricing. Some conditions may apply. While Supplies Last. Items may not be exactly as pictured. Any accessories seen in photos are for display purposes only and may not be included in the price. O.A.C. All used inventory sold as is no warranty. Buyer is accepting a used unit as is with all faults, whether or not immediately apparent. Any & all deposits made are 100% non- refundable. Minimum Deposit of $500.00 to reserve a unit.

Specifications

Model

Xplorer

Category Name

ATVs

Year

2025

Sale Type

New

Manufacturer

Argo

Vin

RFBLR33U9SBF30144

Color

GREEN

Class

CodeName

XPLORER XR 500 4X4 GREEN

Model Code

XPLORER XR 500 4X4 GREEN

Titlestatus

CLEAN

Unitcondition

EXCELLENT

WIDTH

48.4 IN (1,230 MM)

HEIGHT

47.6 IN (1,210 MM)

LENGTH

75 IN (1,905 MM)

BATTERY

12V 18ah AGM

IGNITION

ECU

LIGHTING

DUAL 12V 35W HIGH/LOW BEAM, DUAL WITH BRAKE LIGHT

WHEELBASE

48.2 IN (1,225 MM)

DRY WEIGHT

574 LBS (260 KG)

Model Code

XPLORER XR 500 4X4 GREEN

WET WEIGHT

604 LBS (274 KG)

FINAL DRIVE

SHAFT DRIVE

FUEL SYSTEM

EFI

SEAT HEIGHT

33.2 IN (843 MM)

BRAKE - REAR

HYDRAULIC DISC

DISPLACEMENT

443CC

START METHOD

ELECTRIC START

BORE X STROKE

89 X 71.2 MM

BRAKE - FRONT

DUAL HYDRAULIC DISC

ENGINE STROKE

4-STROKE

COOLING SYSTEM

LIQUID

GROUND CLEARANCE

10.2 IN (260 MM)

TIRE SIZE (REAR)

AT24X10-12

COMPRESSION RATIO

9.1:1

DRIVE SYSTEM TYPE

ELECTRONIC 2WD/ 4WD /LOCK

SUSPENSION - REAR

INDEPENDENT DOUBLE A-ARM

TIRE SIZE (FRONT)

AT24X8-12

TRANSMISSION TYPE

CVT AUTOMATIC

FUEL TANK CAPACITY

4.0 GAL (15.0 L)

SUSPENSION - FRONT

INDEPENDENT DOUBLE A-ARM

VALVE CONFIGURATION

4 VALVE

CYLINDER ARRANGEMENT

SOHC SINGLE-CYLINDER

features

Engine

This compact 4-stroke single overhead camshaft (SOHC) engine is liquid cooled and features electronic fuel injection (EFI). Offering the perfect balance of horsepower and torque, the 443cc engine will work just as hard as you do to get the job done while providing the necessary power for trail rides.

2025 ARGO XPLORER XR 500 FALL SALES PROGRAM

Suspension

XR 500 models feature independent double A-arm front and rear suspensions with extended travel for premium comfort and control in all riding conditions. With adjustable preload shocks, riders can easily make adjustments to match their riding style and load carrying requirements.

Wheels and Tires

The XR 500 is equipped with 24” Kenda tires seated on steel wheels. These aggressive off-road tires provide superior traction when venturing off road. Always wear a helmet and drive safe.

Steel Front & Rear Racks

Gear up and get down to business. The steel front and rear racks deliver 225 LBS. (102 KG) carrying capacity, with multiple tie-down locations for maximum versatility. Now, where are you heading this weekend?

Push-Button 2WD/4WD with Front Differential Lock

Making your experience better. With just a push of a button, selecting between 2WD/4WD gives you on demand capabilities with the addition of a locking front differential for added grab and traction in unruly terrain.

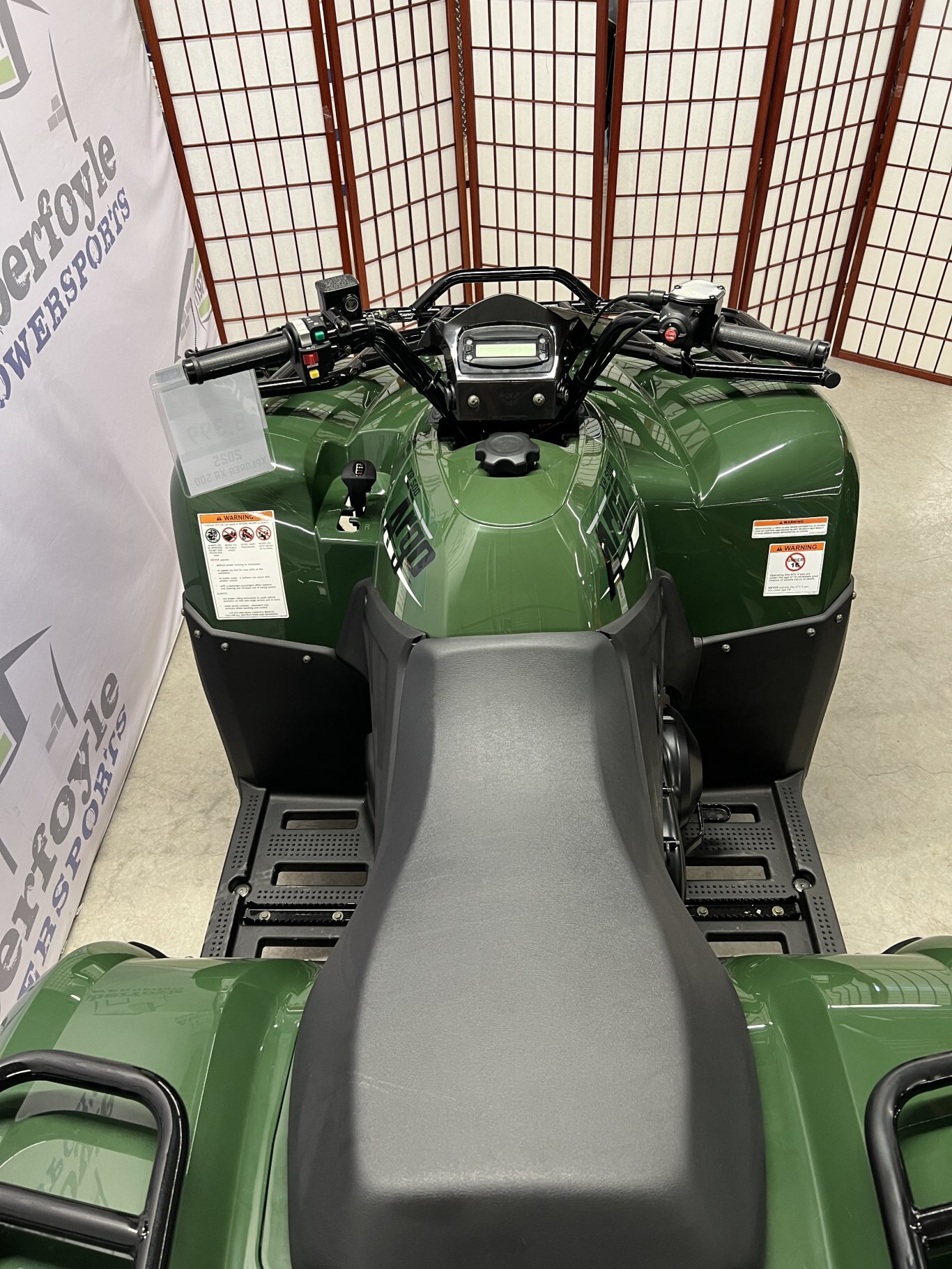

Multifunctional Digital Gauge

Digital instrument panel with odometer, speedometer, Tripmeter, RPM, transmission position, 2WD/4WD/LOCK indicator, fuel gauge, temperature, low-battery, high beam and check engine lights.
